4MW 2 x 2 MW Jenbacher 620 GS-S.LC syngas

Part No: Jenbacher 620 GS-S.LC syngas
Antoni No: Jenbacher 620 GS-S.LC ( ANTB )
Model: Jenbacher 620 GS-S.LC

 please click on images on the right for additional images

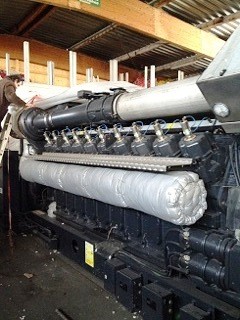

2 x 2 MW Jenbacher 620 GS-S.LC
specialised for synthetic gas (Woodgas)

and natural gas units. Zero hours, only test run,
yom: 1999, incl. all auxiliaries.

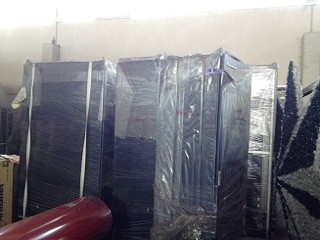

Scope of supply:

Motor, motor auxiliaries, generator and options, module-equipment, cooling
water-system,

automatic lube oil system, oxy-catalyst, heat recovery: warm water (WW) at
module, exhaust

gas, main gas unit, main panel, options main panel, start-unit, el.
pre-heating,

flexible fittings, exhaust bypass, heat recovery pump, heat recovery
temperature regulation at

module. Synchronisation, grid-decoupling, power control signal client,
module control, module control options. Lube oil pump, exhaust gas bypass,
exhaust gas silencer, (includes y-branch pipe).

Techn. Datas:

  • Power: 2 MW electr., 2,3 MW therm.
  • Genset dimension complete: 10 x 2.15 x 2.9 m,
    motor only: 4.605 x 1,68 x 2,605 m.
  • Weight: 29 tons dry, filled 30 tons – motor
    only: 13,2 t dry, filled 14 tons.
  • Specific consumption synthetic gas 2,51 kW/h
    per kW/h, oil 0.3 g/kW/h.
  • Generator: AvK DIG 130i/4, 2.500 kVA/50 Hz,
    cos. phi 0.8-1.0, 10,500 V Y, insulation
  • class H, IP 23, ambient temp. 40°C, SAE 21”.
  • Efficiency: electr. 36 % (can be upgraded by
    adding combustion chamber for 2-2.5%).
  • Therm. 44.8% = TOTAL 83.3%
